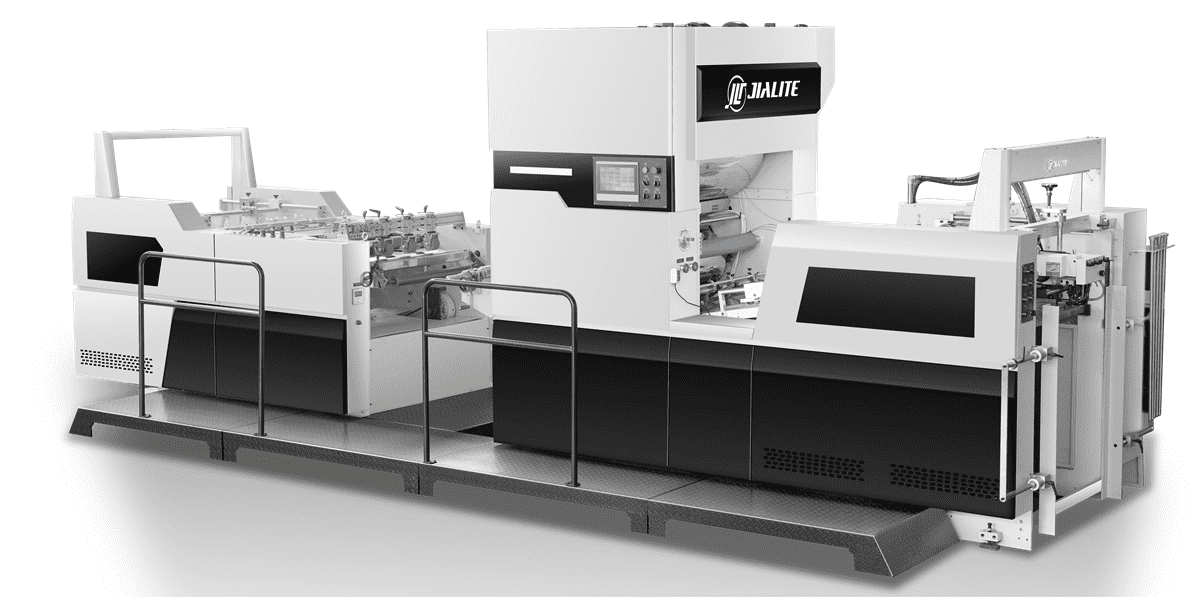

HIGH SPEED AUTOMATIC VERTICAL LAMINATING MACHINE-NFM-E800

FEEDING UNIT 送纸部

伺服高速飞达，四吸四送平稳快速送纸，最高速度可达12000张/小时。

Servo motor High Speed Feeder, 4 suckers for lifting and 4 suckers for conveying structure. Max Speed 12000 sheets/h.

放纸台有上下超限保护

The paper feeding table has upper and lower over-limit protection.

不停机送纸高度可以达1050mm, 预堆装置，不停机送纸

The height of non-stop feeding can reach 1050mm, pre-stacking device, non-stop feeding.

贝克真空泵 BECKER Vacuum pump.

伺服飞达 Servo motor control.

输送台板采用定制不锈钢波纹板

The conveying table adopts customized stainless steel corrugated board.

毛刷轮和橡胶压轮走纸平稳

The brush wheel and rubber pressing wheel move smoothly.

搭边伺服结构，提高搭边精准度，搭口误差在≤±2mm

Servo motor overlap, improve accuracy of lap, error≤±2mm

    Pallet paper stack loading method (Option 01)                   Track Pre-stack paper stack loading method(Option 02)

OPTION UNIT 01 DUST REMOVER UNIT OPTION选配一除粉单元

Special designed to clean the excess powder following from printing. This machine adopt Heat Calendaring. Use Heat Calendaring Roller removes the remaining powder from both sides of the sheet.

Belt Suction Conveyor system for transporting sheets smoothly through the machine without damage.

Using a large size powder collection box, easy to clean.

Independent powder cleaner can be fitted to our machines.

LAMINATOR HOST覆膜主机

干燥辊直径加大至800mm，采用电磁加热系统

Drying roller diameter increased to 800mm, using electromagnetic heating system.

压力胶辊压力可以最大到12T

Max pressure of press roller is 12T

上胶系统铁氟龙工艺处理，方便清洗不粘胶

Gluing system Teflon process treatment, easy to clean and non-sticky

采用双电磁加热系统，升温降温快，温度稳定，加热钢辊采用内置测温装置，测温更加准确。

Adopt double electromagnetic heating system, heating up and cooling down fast, temperature stability, heating steel roller using built-in temperature measuring device, more accurate temperature measurement.

调胶水厚度系统，出厂前设置好常规产品的胶水厚度，客户可以一键气缸调节胶水厚度，如果不同的产品可以进行微调根据

Glue thickness adjustment system, the glue thickness of conventional products is set before leaving the factory, customers can adjust the glue thickness with one key cylinder, if different products can be fine-tuned, which with gauge will be more clear to adjust

CUTTING UNIT割纸部分

割纸机配有张力控制器，防卷曲装置，确保纸张平整不卷曲。

The paper cutter is equipped with a tension controller and an anti-curl device to ensure that the paper is flat and not curled.

割纸部分含有磨砂轮，圆盘刀分切，满足客户不同材质膜分切要求

The paper cutting part contains grinding wheel, disc knife and hot knife for slitting, meeting customers' requirements for slitting films of different materials

弹跳辊有独立电机控制，利用速度差可以使纸张分离
The bounce roller is controlled by an independent motor, and the paper can be separated by using the speed difference

OPTION UNIT 02 CHAIN KNIFE选配二链刀单元

Choose to upgrade the chain knife unit which include round knife, suitable for waterbase gluing and thermal  BOPP/OPP/PET/PLA/PP and Metal film, etc

选择升级链刀割纸机，含圆盘刀，适合即涂预涂BOPP/OPP/PET/PL/PP及金属膜等材料。

Thin paper thickness above 105g, which can ensure the flatness of the paper, directly enter the next process of die-cutting and bronzing.

薄纸纸张105g以上，能确保纸张平整，直接进入后道模切烫金加工工艺。

Chain knife wiht high cost performance

链刀性价比高

OPTION UNIT 03 HOT KNIFE 选配三热刀单元

割纸机单元功能结构

1. Standard configuration is hot knife cutter and disc knife, suitable for waterbase gluing and thermal  BOPP/OPP/PVC/PET/ Metal film.

标配热刀割纸机,含圆盘刀，适合即涂预涂BOPP/OPP/PVC/PET/金属膜

2.  hobbing cutter structure, Running speed fast.

滚刀结构，运行速度快。

3. Suitable for 157g paper cutting, without film tail热刀通过感应器接收到纸张瞬间厚度的变化信号来决定裁切位置，裁切精准达到0.5mm。

The hot knife determines the cutting position by receiving the instantaneous thickness change signal of the paper through the sensor, the cutting accuracy0.5mm

4. Full paper sheet laminating

纸张满版覆膜，热刀切膜。

5. Suitable for above 157gms paper cutting, without tail film and make sure paper flat.

适合157gms纸张覆膜裁切，无尾膜，确保纸张平整。

6. 24 V low voltage power supply, blade direct heating, safety guarantee.

24伏低压供电，刀片直接加热，安全保障。

NON-STOP COLLECTOR自动不停机收纸部

不停机收纸高度可以达1050mm，收纸平台自动升降。

The non-stop collector height can reach 1050mm. The collector platform rise and down automatically.

采用气动理纸结构，保证纸张整齐，方便下一道工序

Adopt pneumatic paper sorting structure to ensure the neatness of the paper and facilitate the next process

带有减速轮，避免纸张由于速度过快撞击挡板导致破损

with a reduction wheel to prevent the paper from being damaged due to too fast hitting the baffle

计数电眼，运行纸张数量显示收纸机处的显示屏上，可清零可累加

Counting electric eye, the number of running paper is displayed on the display screen at the take-up machine, which can be cleared and accumulated

感应电眼，感应纸张长度，纸张长度有变化则皮带加速，收纸机挡板翻倒提出纸张

Induction electric eye, sensing the length of the paper, if the length of the paper changes, the belt will accelerate, and the baffle of the take-up machine will overturn and lift the paper
